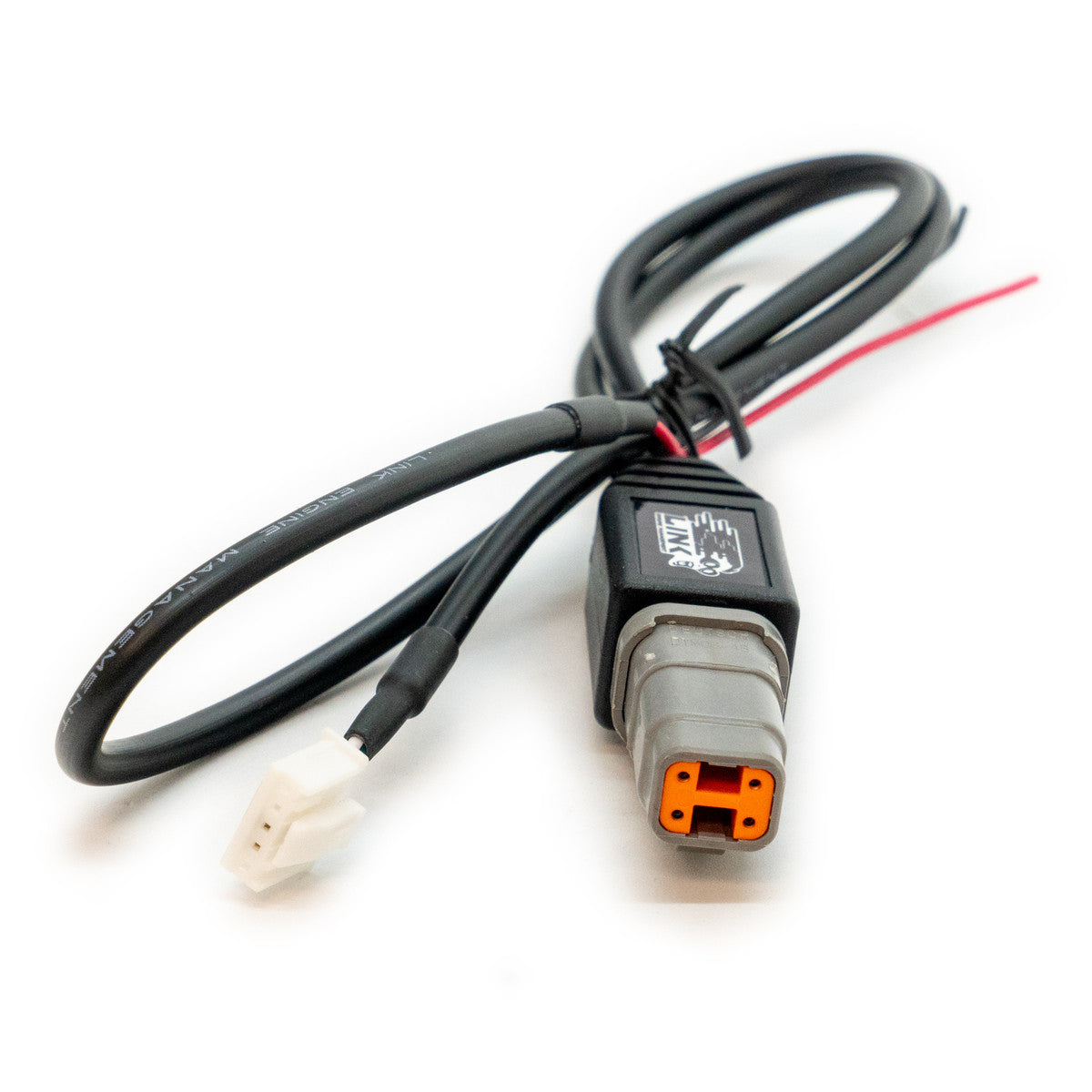

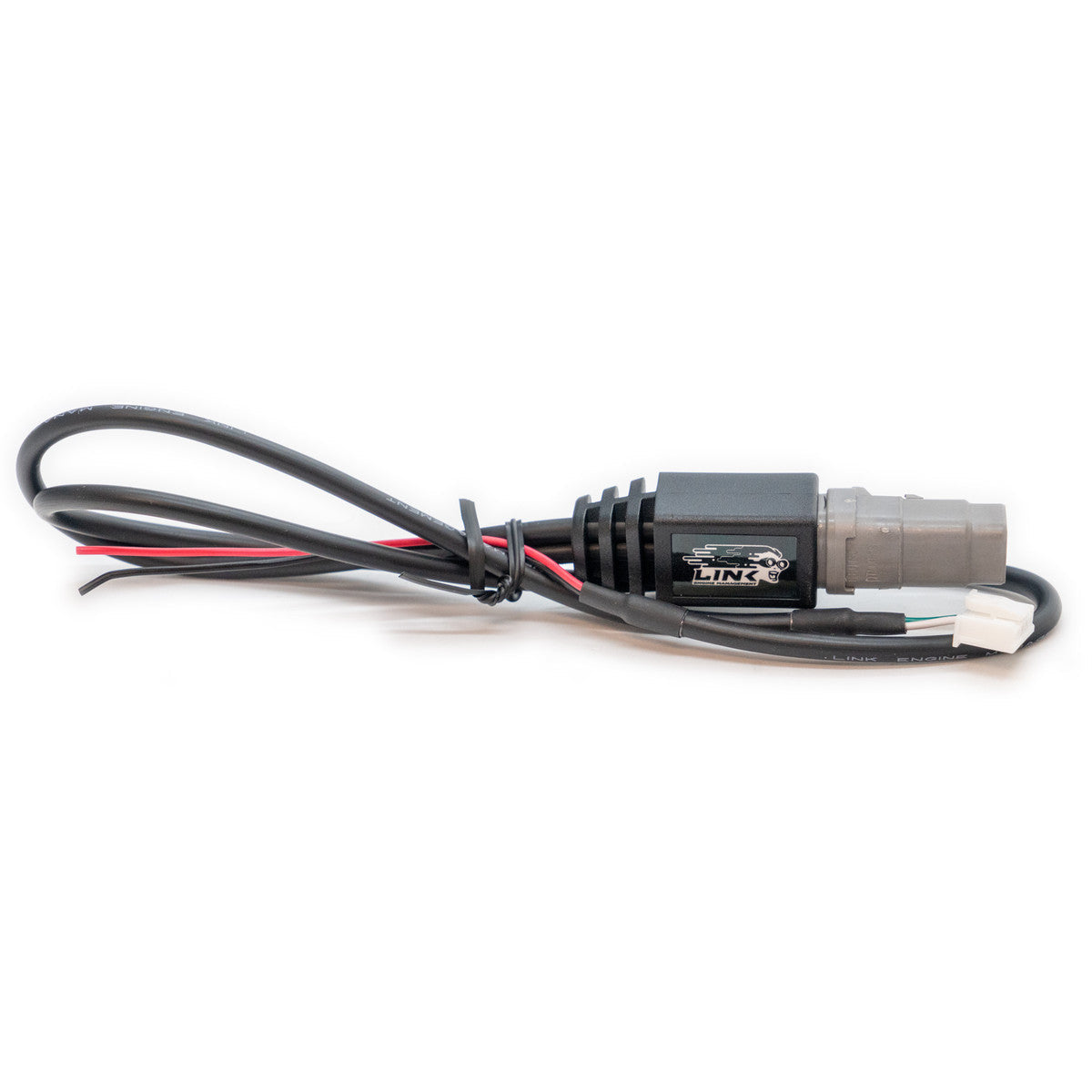

Link ECU | CANJST - Link CAN Connection Cable for G4X/G4+ Plug-in ECU’s (101-0197)
Link ECU | CANJST - Link CAN Connection Cable for G4X/G4+ Plug-in ECU’s (101-0197)
Link ECU | CANJST - Link CAN Connection Cable for G4X/G4+ Plug-in ECU’s (101-0197)
Link ECU | CANJST - Link CAN Connection Cable for G4X/G4+ Plug-in ECU’s (101-0197)

Link ECU | CANJST - Link CAN Connection Cable for G4X/G4+ Plug-in ECU’s (101-0197)

LINK-ECU-101-0197

$50.73
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

Used to add CAN communications to G4+/G4X Plugin ECU’s which have a 5 Pin CAN connector.  Plugs directly into the CAN socket on the ECU PCB. 12V and Ground via flying lead. Terminates to a DTM4 Male Connector which is compatible with other Link CAN accessories including the CAN Extension cable (CANEXT) and CAN Splitter Cable (CANTEE)



Not compatible with the below PlugIns (these require a CANJST4 Cable):

233-4000 - PlugIn ECU G4X Honda S2000 AP1

DTM4 Pin Out

Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V

Click here for the CAN Gauge manual.
