A great value kit that includes various extended lower control arms and short knuckles!
The easy-to-handle short knuckles and extended lower control arms might just give you a higher level of driving performance!
■Type■
STD
20mm
30mm
■Details■

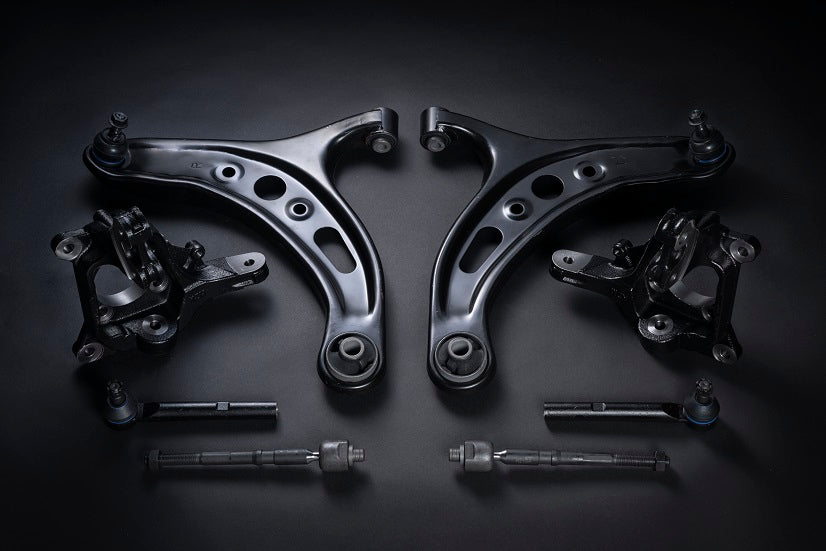

Extended lower control arms (left and right, 1 set )

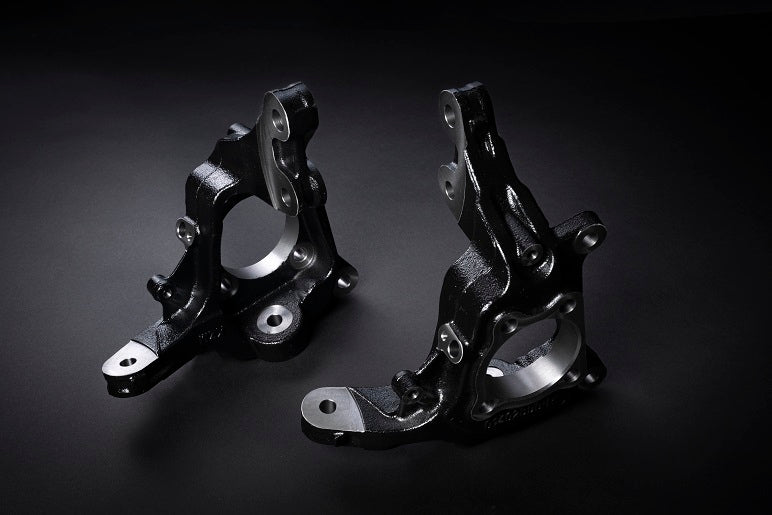

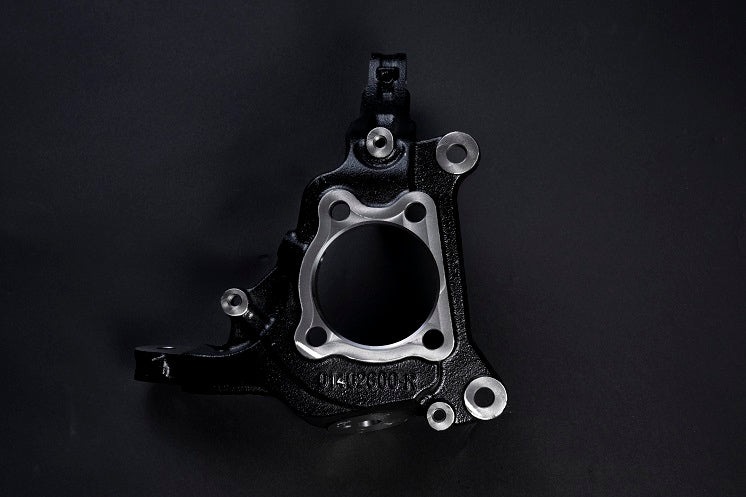

Short knuckles (left and right, 1 set

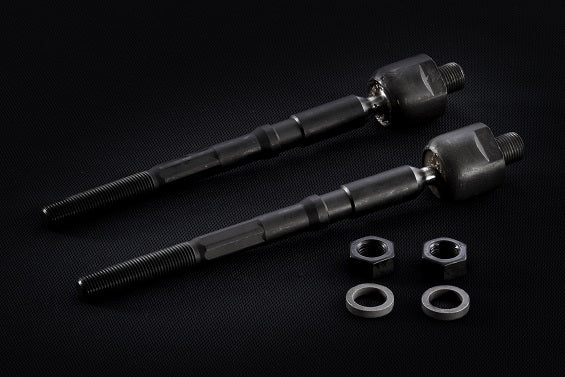

) Reinforced tie rods (with steering angle increase washers

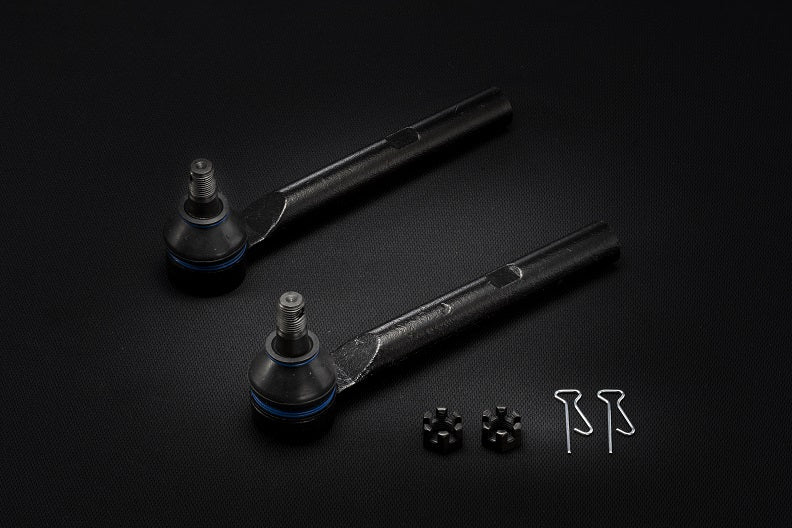

) Extended tie rod ends 175mm
■Compatibility■
86 (ZN6)
GR86 (ZN8)
BRZ (ZC6/ZD8)
*When installing on a ZD8, the brake backplate will interfere. Either change to a ZN8 backplate or cut off the interfering part.
ZN8 genuine backplate RH part number: SU003-00583
ZN8 genuine backplate LH part number: SU003-00584
■Regarding knuckle use
Excessive steering angles and aggressive driving are expected!
Be sure to perform daily inspections, adjustments, and maintenance.
■Recommended parts for simultaneous installation:
Stabilizer When increasing the steering angle on the 86/BRZ, the stabilizer will bind.
To suppress this binding, the shape of the stabilizer body has been significantly changed!
Also, since the stabilizer link is not linked to the steering, the stabilizer can perform to its full potential!
The mounting position uses the existing holes in the lower arm.
It comes with a stabilizer link and can be installed directly.
Japan parts service, please reach out for etas as some items are made to order.
Email us at info@buypartsfromjapan.com
