D-MAX | Reinforced 5/6-Bolt Axles for Nissan Silvia S13/S14/S15, 180SX, 240SX, Skyline R32/R33/R34 & Laurel C35
DMDSTR200LRSET
- In stock, ready to ship
- Backordered, shipping soon
D-MAX | Reinforced 5/6-Bolt Axles for Nissan Silvia S13/S14/S15, 180SX, 240SX, Skyline R32/R33/R34 & Laurel C35
D-MAX is a Japanese motorsports manufacturer known for drift-focused suspension, steering, aero, drivetrain, and vehicle-specific performance components.

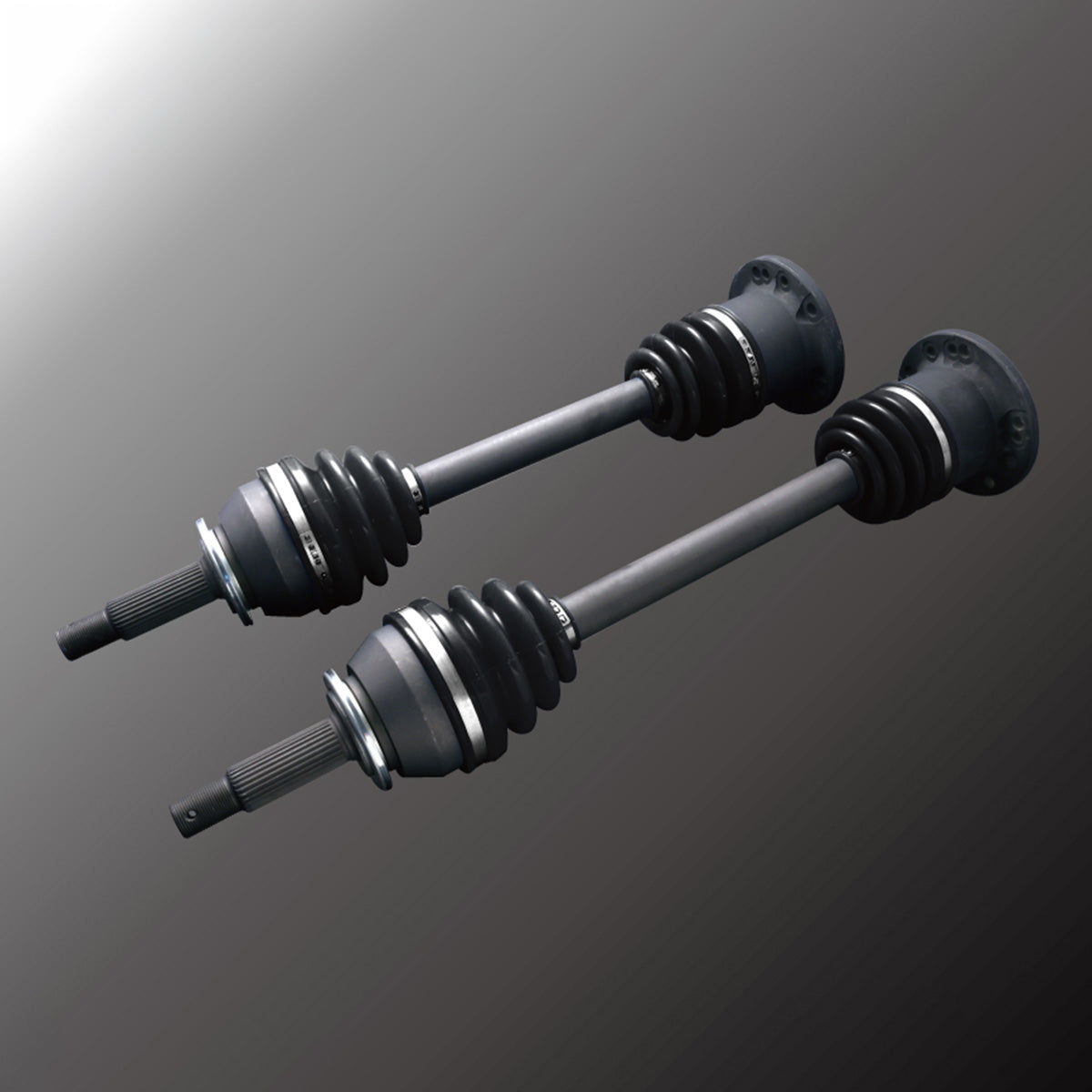

These reinforced axle shafts are engineered for high-load drift and performance applications, with multi-pattern 5/6-bolt compatibility where specified.
In recent years, with the emergence of numerous high-grip tires and traction-enhancing items for drifting, many people are opting to change their suspension to that of a GT-R. However, changing to a GT-R suspension requires replacing many parts, including knuckles, hubs, drive shafts, and differentials, and these parts are becoming increasingly expensive due to their limited availability. Therefore, after several years of repeated strength and grease testing, we have finally released the "SR Reinforced Drive Shaft." Its most notable feature is its 5/6H multi-design, allowing for direct installation on R200 differentials with 5H or 6H configurations. The main shaft uses stronger steel than the genuine 28mm shaft, and its increased diameter of 31.5mm results in approximately 1.48 times the strength of the genuine part. We have developed a reinforced drive shaft specifically for the R200 differential.

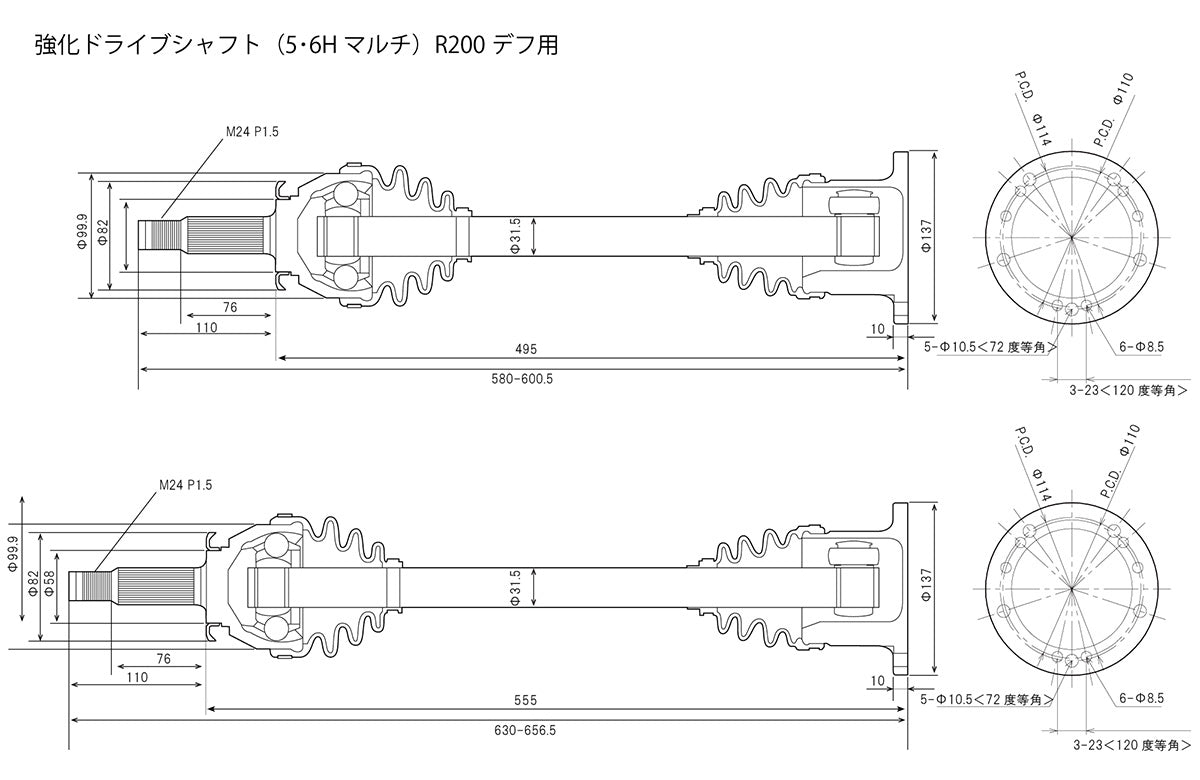

Reinforced drive shaft specifications
| shaft diameter | 31Φ |

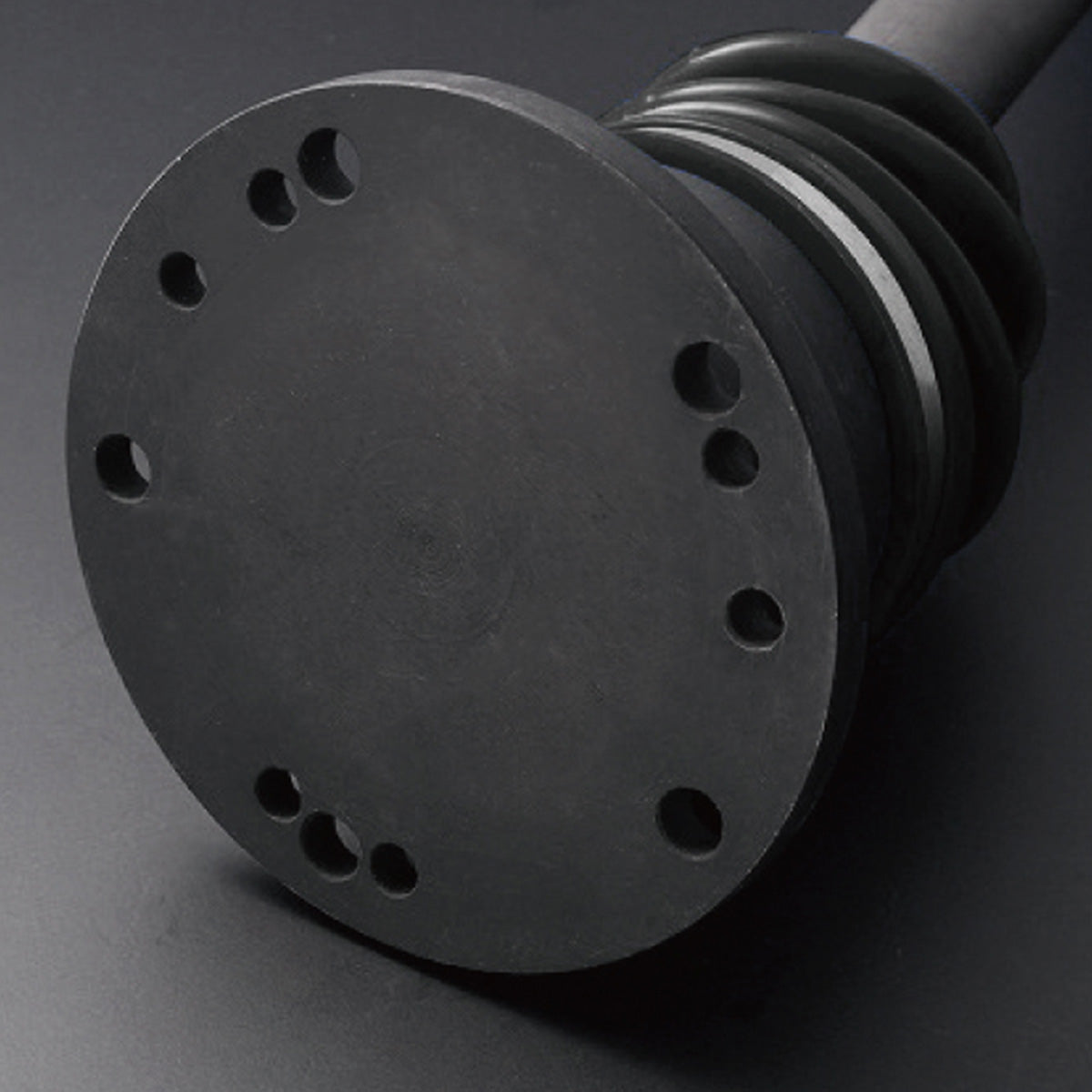

| Installation | 5H/6H multi-hole design |

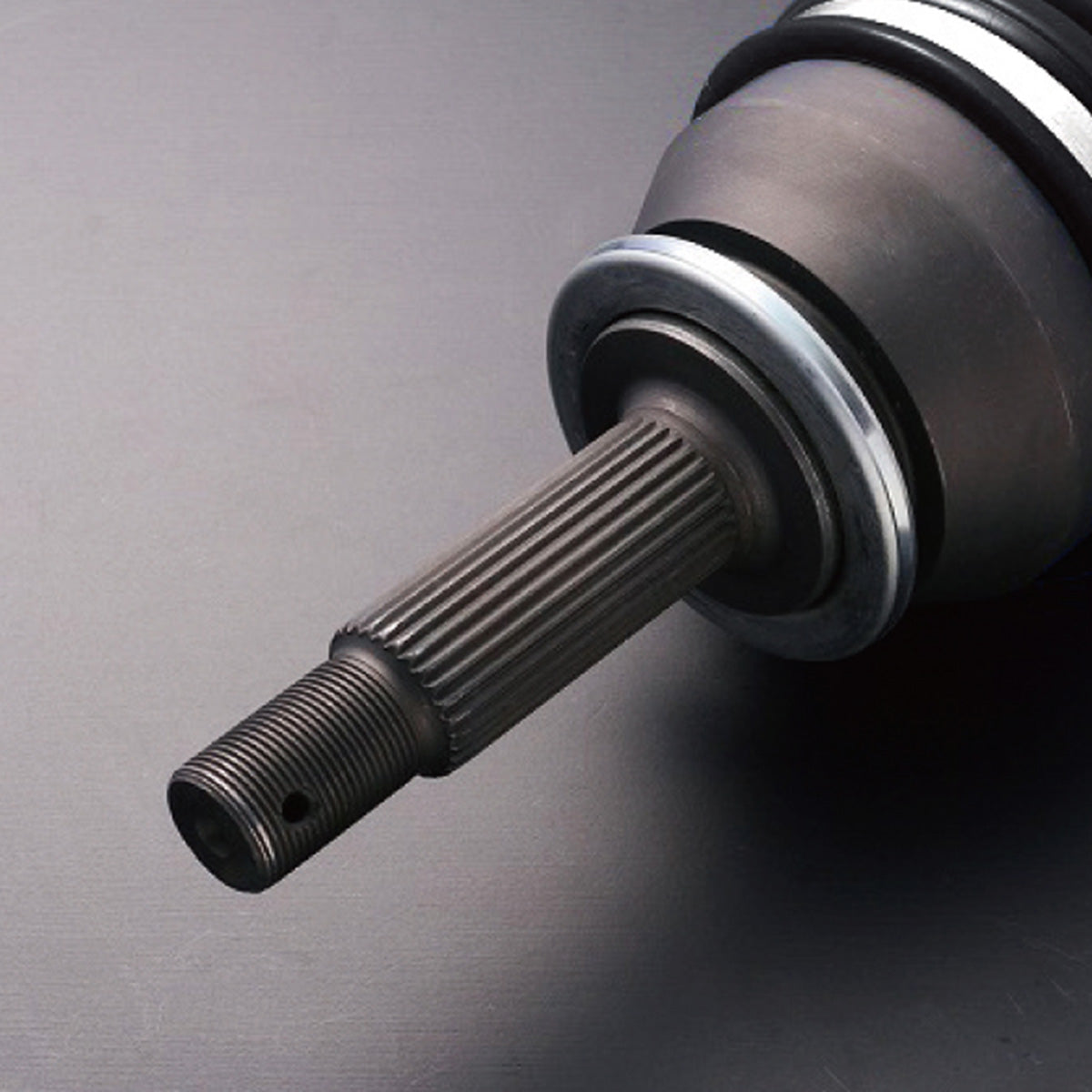

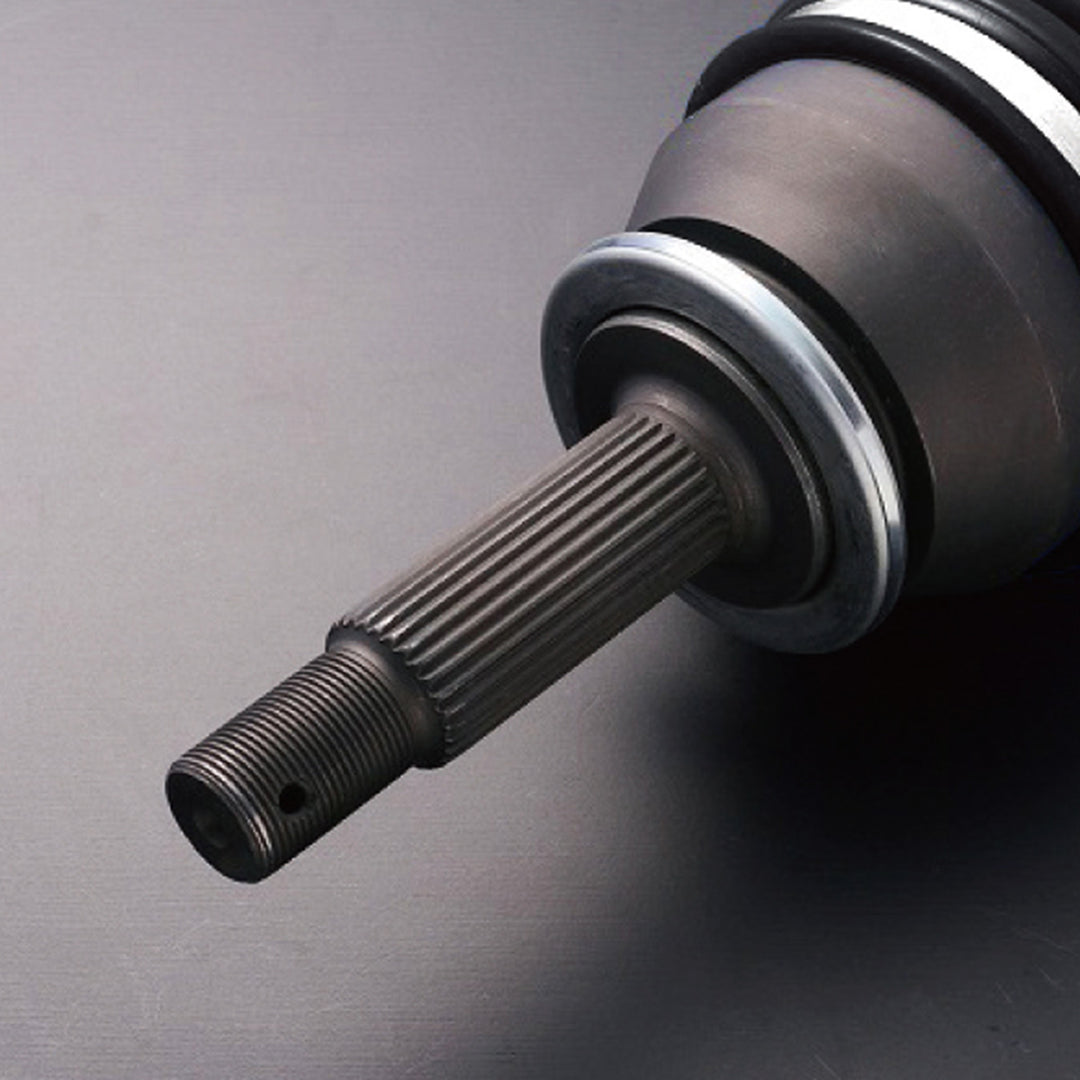

| spline | Original shape (GT-R hub cannot be installed) |
| Grease | Injected with a jointly developed product manufactured by a Japanese company. |
*For customers using this product in competitions, etc., please use the highly durable " [Extreme Pressure Grease for Drive Shafts](https://www.dmax-cs.com/products/detail/1215) ". *Recommended horsepower is approximately 400 PS.
accessories
| nut | 2 pieces (for spline protection) |
| Cotter pin | It is not included, so please use the genuine part. |
| nut | It is not included, so please use the genuine part. |
Product contents
| Left and right set (for one vehicle) | ¥60,500 (tax included) |
| Right side/driver's side (the longer side) | ¥36,300 (tax included) |
| Left side / Muffler side (the side with the shorter overall length) | ¥35,200 (tax included) |
Compatible models
| Compatible | (R)PS13/S14/S15/R32/R33/R34/C35 |
| Not compatible | Not compatible with 4WD GT-R models due to the different shape of the side flanges. |
Regarding the hub fixing nuts : *The included nuts are for spline protection only; please be sure to use the genuine nuts. Inserting them incorrectly between the drive shaft and the hub may damage this product. This product is a competition-only part and is limited to use on closed courses such as circuits or at exhibitions; it cannot be used on public roads. If installed and used on public roads, it may violate road traffic laws and safety standards, and its use on roads or places similar to public roads as defined by the Road Transport Vehicle Act and other laws is strictly prohibited. Violations of these laws and regulations will result in penalties from the supervisory authorities. When using competition-only parts on public roads, please ensure that the vehicle complies with safety standards and, if necessary, change the vehicle registration (modified vehicle inspection). Please contact your local Land Transport Bureau to inquire about compliance with safety standards. The purchaser shall bear all obligations, responsibilities, and management for any direct or indirect damages caused by the use of this part. Please understand that this product is a competition-specific part, and use it at your own risk. Purchase is only permitted if you agree not to pursue legal action or claim damages from the manufacturer under any circumstances.
Important Notice Regarding Products Sold Between May 23, 2020 and March 31, 2021 Because the thickness inside the hub varies depending on the vehicle model, a washer (4.5-5mm) was included to adjust the tightening of the nut (to allow clearance for the splines). This washer is to be installed between the hub and the fixing nut. *If you mistakenly install it between the drive shaft and the hub, this product may be damaged. As of April 2021, the specifications of this product have been changed, and the length of the splines has been changed, so the washer is no longer necessary and is therefore not included.
Product details
- Product code: DMDSTR200L ~ DMDSTR200R
- Available as a left and right vehicle set, right/driver-side axle, or left/muffler-side axle
Vehicle fitment: S13 (Silvia), S13 (240SX Coupe), 180SX (S13 Hatch), S14, S15, C35, R32, R33, R34
Professional installation and a complete compatibility check are recommended before ordering and installation.
PLEASE NOTE:
This is a Japan Parts Service. Some items are made to order (typically 4-8 weeks to make)
Any questions? Fill out the form below or send us an email at info@buypartsfromjapan.com
If you select air mail, expect a 4-6 week wait
(could be less if stock is readily available in Japan)
If you select container shipping, expect a 4-6 month wait
All sales are final. Availability and production times can change without notice.
Check our In Stock Parts collection for parts currently stocked in the USA and ready to ship.
