D-MAX | D1SPEC Type-R Tie Rods for Nissan Silvia S13/S14/S15, 180SX, 240SX, Cefiro A31, Laurel C33/C34/C35 & Skyline R32/R33/R34
DMSU056AT2
- In stock, ready to ship
- Backordered, shipping soon

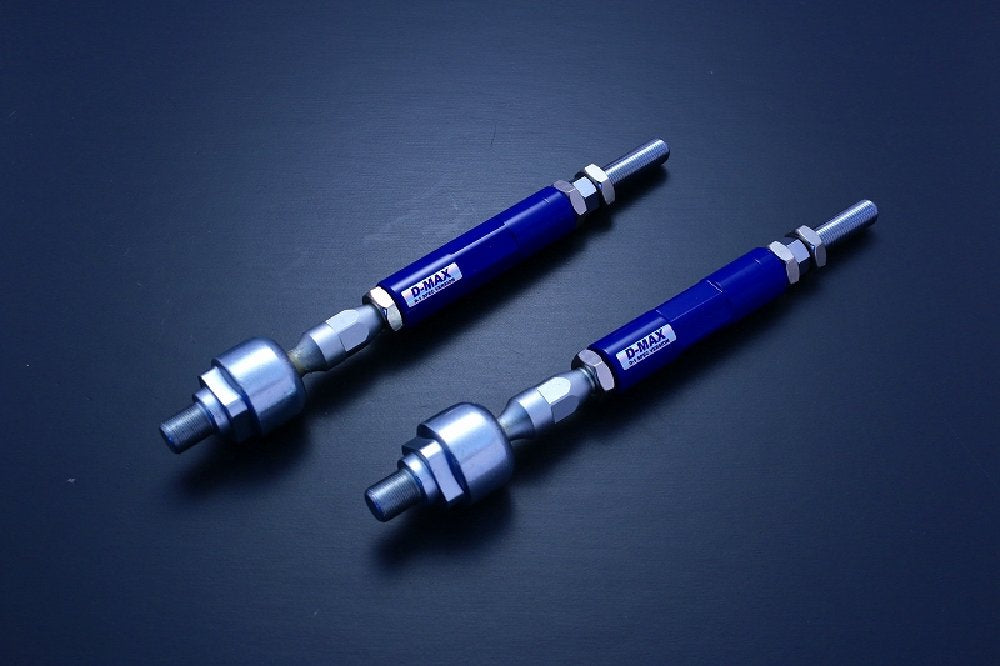

D-MAX | D1SPEC Type-R Tie Rods for Nissan Silvia S13/S14/S15, 180SX, 240SX, Cefiro A31, Laurel C33/C34/C35 & Skyline R32/R33/R34
D-MAX is a Japanese motorsports manufacturer known for drift-focused suspension, steering, aero, drivetrain, and vehicle-specific performance components.
The D-MAX D1SPEC Reinforced Tie Rod TypeR (SR series) is designed for drift and performance builds that require more precise suspension movement, consistent alignment, and increased adjustment compared with worn factory components.
The D1SPEC reinforced tie rod type R offers a significantly wider adjustment range than conventional reinforced tie rods. This allows for compatibility with extended lower arms and short knuckles without the need for additional parts. Of course, it is also compatible with vehicles using the original knuckles. While many reinforced tie rods increase steering angle by using spacers, D-MAX products are integrally molded, resulting in increased strength and steering angle.

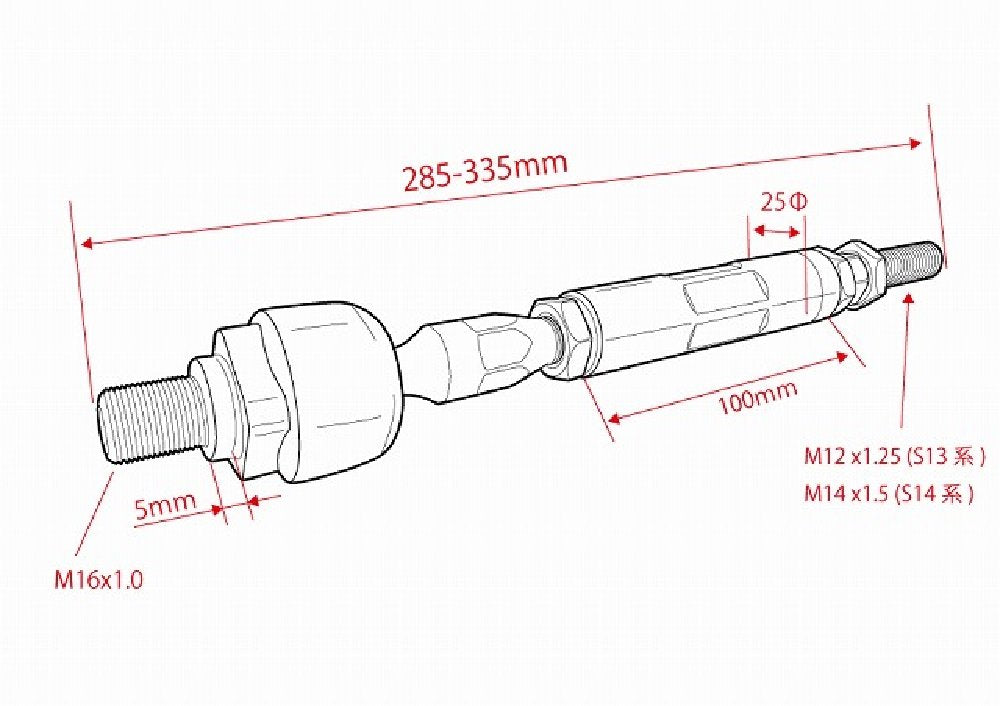

■Specifications
| Rod diameter | Φ25 |
| Rod thickness | 6mm |
| Adjustment method | Turnbuckle type |
| Adjustment screw pitch | 1.5 mm |
| Adjustment width | 50mm |

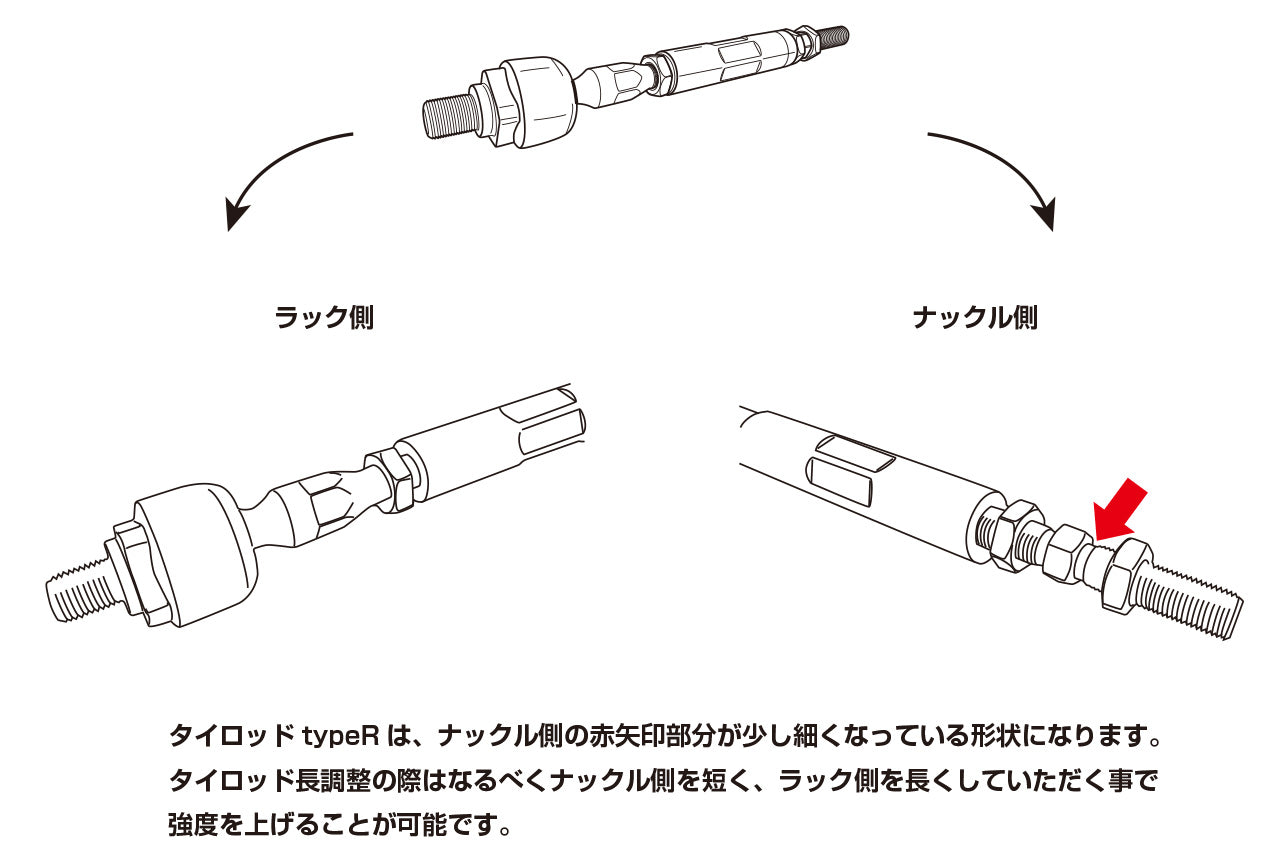

* Compared to the genuine part, the steering angle is significantly increased by the equivalent of a 5mm washer. * When installing this product, please adjust it on the rack side.
Product details
- Product code: DMSU056AT2 to DMSU057AT2
Vehicle fitment: S13 (Silvia), S13 (240SX Coupe), 180SX (S13 Hatch), S14, S15, A31, C33, C34, C35, R32, R33, R34
Professional installation and a complete compatibility check are recommended before ordering and installation.
