D-MAX | D1SPEC Pillow-Ball Tie Rod Ends for Nissan Silvia S13/S14/S15, 180SX, 240SX, Cefiro A31, Laurel C33/C34/C35 & Skyline R32/R33/R34
DMSU022AT2
- In stock, ready to ship
- Backordered, shipping soon
D-MAX | D1SPEC Pillow-Ball Tie Rod Ends for Nissan Silvia S13/S14/S15, 180SX, 240SX, Cefiro A31, Laurel C33/C34/C35 & Skyline R32/R33/R34
D-MAX is a Japanese motorsports manufacturer known for drift-focused suspension, steering, aero, drivetrain, and vehicle-specific performance components.

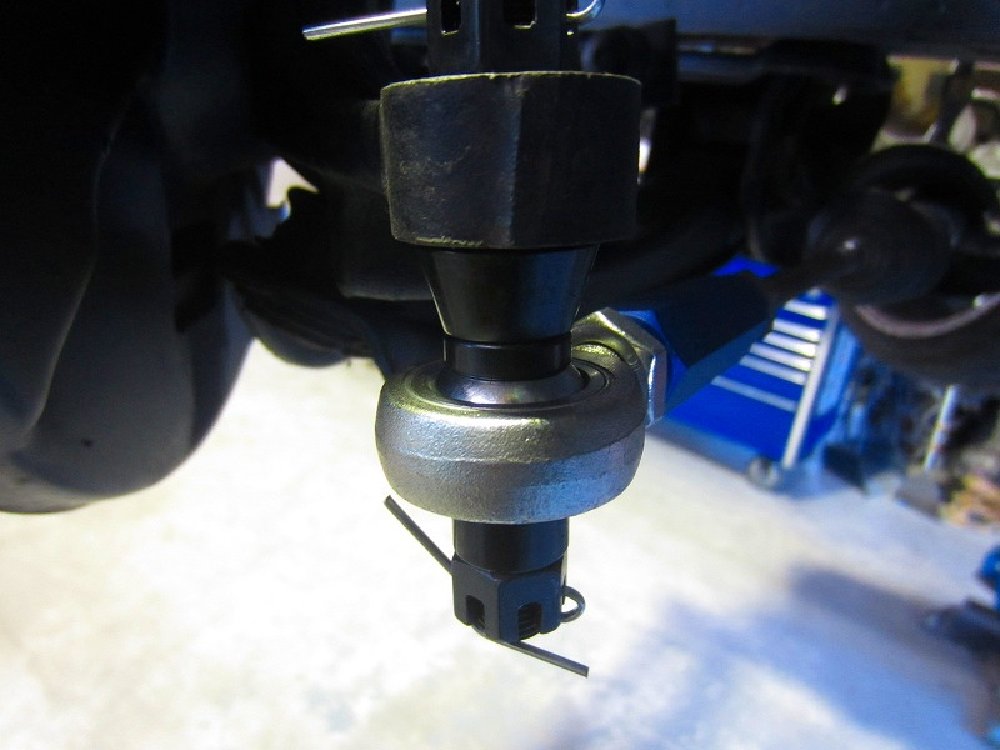

The D-MAX D1SPEC Tie Rod End Pillow Type is designed for drift and performance builds that require more precise suspension movement, consistent alignment, and increased adjustment compared with worn factory components.
This improves steering response and enhances front tire grip. By optimizing the setup, it also reduces stress on the tie rods. For drifting, the suspension settings are adjusted to match the course characteristics; using pillow ball mounts provides both strength and optimization.
■ Specifications
| Pillow outer diameter | 39Φ |
| Pillow body diameter | 14Φ |
| Rod diameter | 24Φ |
| Rod length | Equivalent to genuine ratio |

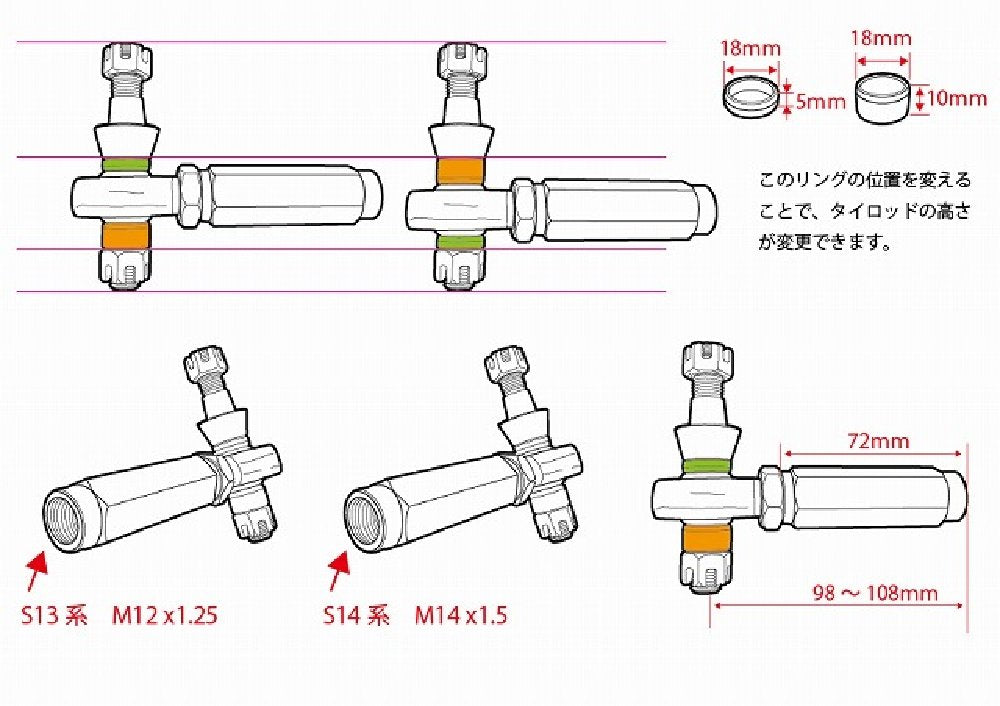

| Roll center adjustment range | Height adjustable from 0mm to 15mm (using the included washers). |
| Adjustment method | Turnbuckle type |
| Adjustable screw pitch | 1.5 mm |
| Adjustment width | 10mm |
| Adjustment pitch / S13 series | 1.25 mm |
| Adjustment pitch / S14 series | 1.5 mm |
■ Material
| Rod section | Duralumin 6061-T6 |

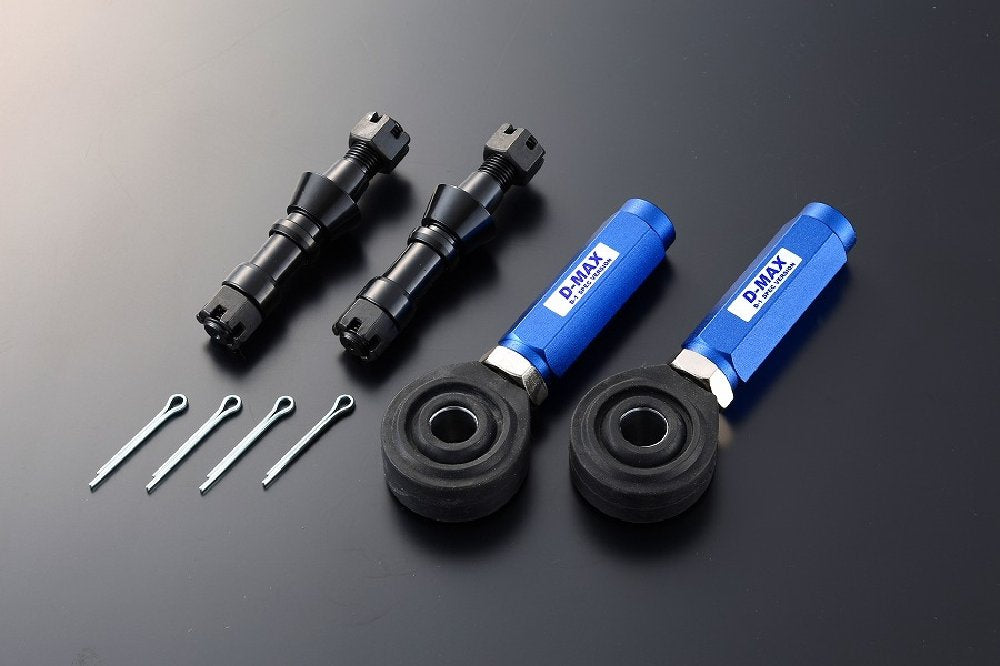

■ Accessories
| nut | 4 pieces |
| Cotter pin | 4 bottles |
| Roll center adjustment collar | 2 large 2 small |
| Pillow rubber cover | 2 pieces / Standard equipment |
Product details
- Product code: DMSU022AT2 ~ DMSU023AT2
Vehicle fitment: S13 (Silvia), S13 (240SX Coupe), 180SX (S13 Hatch), S14, S15, A31, C33, C34, C35, R32, R33, R34
Professional installation and a complete compatibility check are recommended before ordering and installation.
