D-MAX | D1SPEC Ver.2 Rear Toe Control Rods for Nissan Silvia S13/S14/S15, 180SX, 240SX, Cefiro A31, Laurel C33/C34/C35, Skyline R32/R33/R34, 300ZX Z32, Cedric Y32/Y33 & Stagea C34
D-MAX is a Japanese motorsports manufacturer known for drift-focused suspension, steering, aero, drivetrain, and vehicle-specific performance components.
The D-MAX D1SPEC Pillow Ball Rear Toe Control Rod (Ver.2) is designed for drift and performance builds that require more precise suspension movement, consistent alignment, and increased adjustment compared with worn factory components.
Similar to Ver.1, it corrects the unstable behavior of the lowered rear suspension. By adjusting the toe, you can change the rear understeer/oversteer characteristics. The original adjustment range was narrow and limited. The biggest feature of Ver.2 is that the rod section is offset to prevent arm lock. The rod body is a turnbuckle type, and a second turnbuckle type is used on the pillow side so that fine adjustments can be made even after installation. Since the member side and knuckle side can be adjusted to an equal length, the load on the screw part, which is subjected to the most stress, can be reduced. It also becomes possible to respond to sudden changes in road surface conditions.

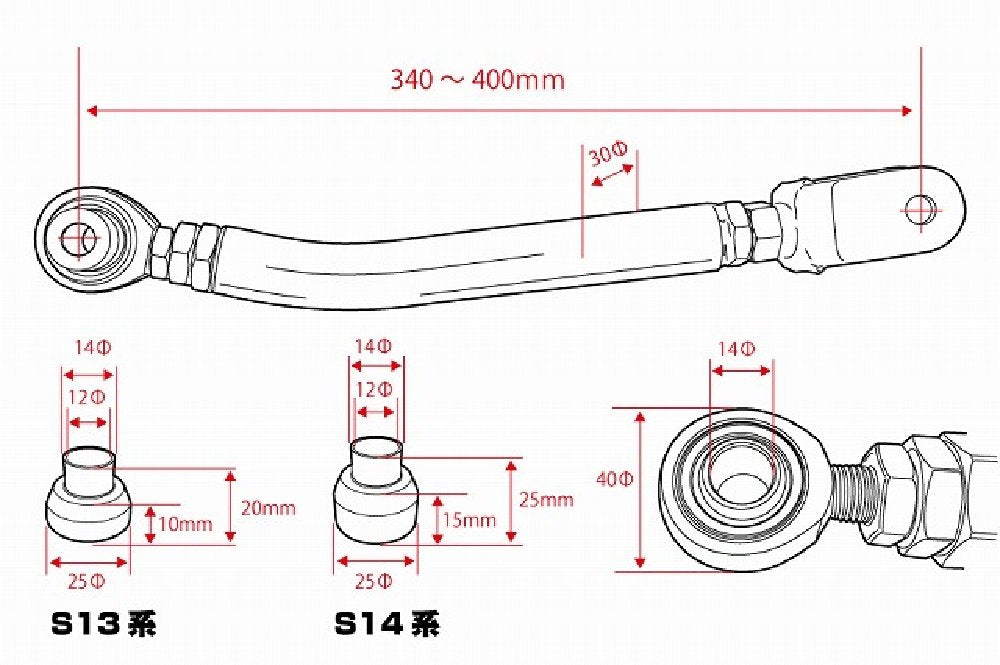

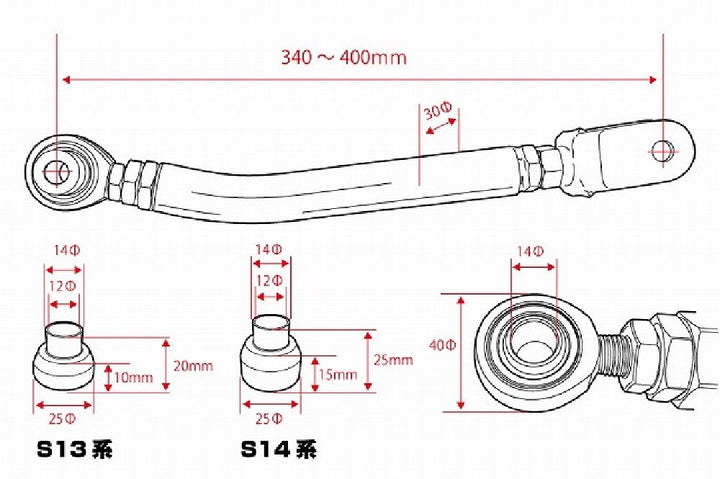

■Specifications
| Rod diameter |
30mm diameter |
| Rod thickness |
6mm |
| Pillow outer diameter |
40mm diameter |
| Pillow body diameter |
14Φ |
| Adjustment method |
Turnbuckle type |
| Adjustment pitch |
1.5 mm |
| Adjustment width |
55mm |
■ Accessories
| color |

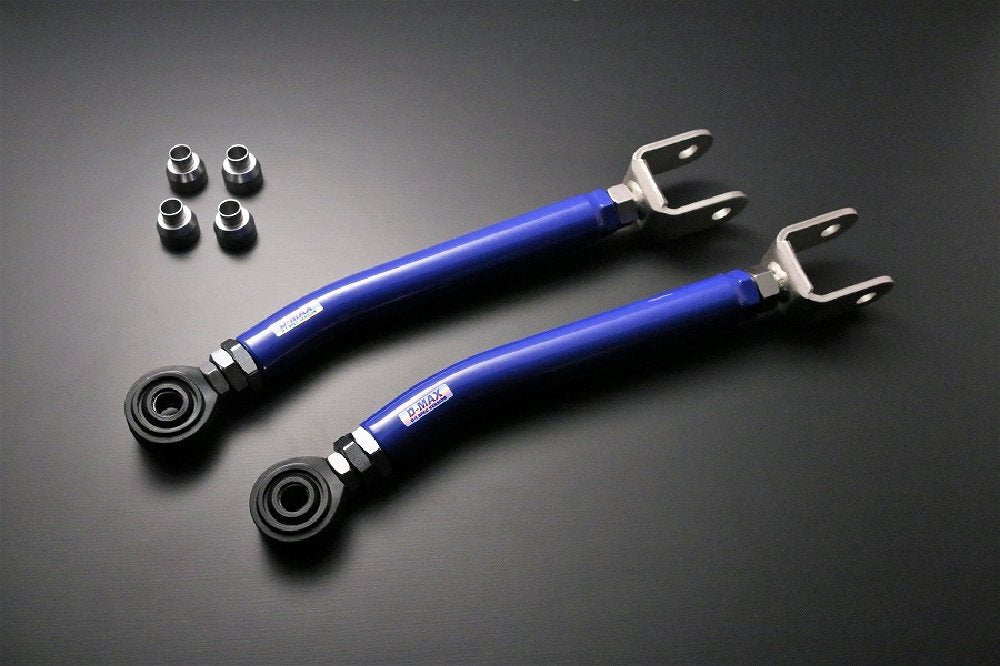

4 pieces |
| Pillow rubber cover |
2 pieces / Standard equipment |
Product details
- Product code: DMSU005AT3 to DMSU006AT3
Vehicle fitment: S13 (Silvia), S13 (240SX Coupe), 180SX (S13 Hatch), S14, S15, A31, C33, Z32, C34, C35, R32, R34, Y32, Y33, R33
Professional installation and a complete compatibility check are recommended before ordering and installation.
