D-MAX | D1SPEC Ball-Joint Tie Rod Ends for Nissan Silvia S13/S14/S15, 180SX, 240SX, Cefiro A31, Laurel C33/C34/C35 & Skyline R32/R33/R34
DMSU022AT3
- In stock, ready to ship
- Backordered, shipping soon
D-MAX | D1SPEC Ball-Joint Tie Rod Ends for Nissan Silvia S13/S14/S15, 180SX, 240SX, Cefiro A31, Laurel C33/C34/C35 & Skyline R32/R33/R34
D-MAX is a Japanese motorsports manufacturer known for drift-focused suspension, steering, aero, drivetrain, and vehicle-specific performance components.

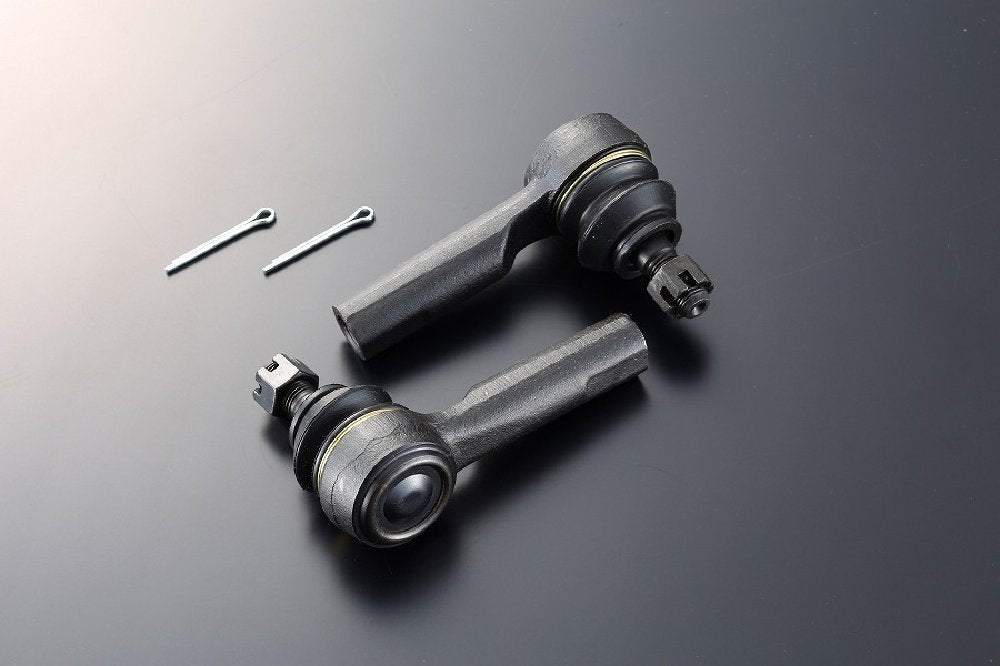

The D-MAX D1SPEC Tie Rod End Ball Joint Type is designed for drift and performance builds that require more precise suspension movement, consistent alignment, and increased adjustment compared with worn factory components.

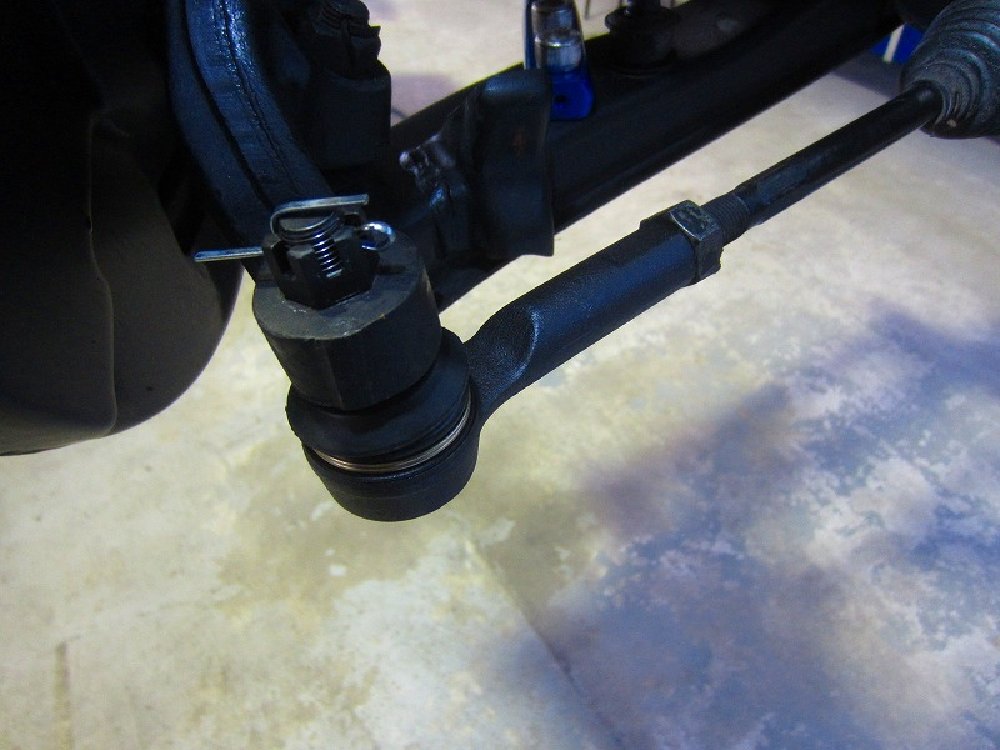

This tie rod end plays a crucial role in connecting the knuckle and the steering gearbox. The ball joint, normally protected by grease inside the boot, ensures smooth movement and protects the joint. This tie rod end ball joint type uses a reinforced boot, allowing for a refreshed feel while maintaining the neutral feel of the original. ■Specifications

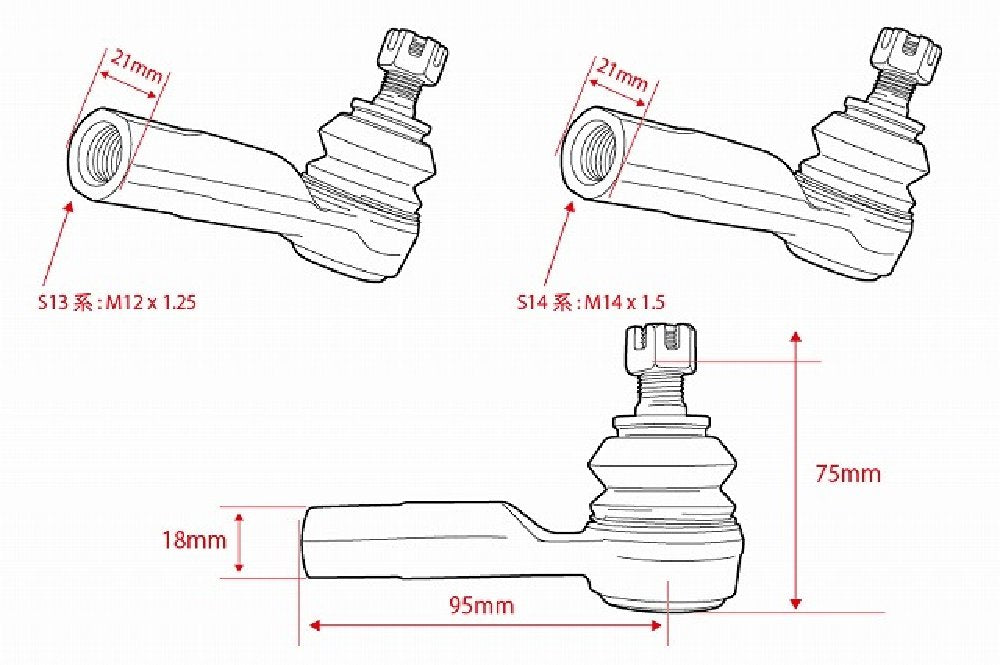

| Rod diameter | 22Φ |
| Rod length | Equivalent to genuine ratio |
| Adjustment pitch / S13 series | 1.25 mm |
| Adjustment pitch / S14 series | 1.5 mm |
■Material
| Main body | S45C |
■ Accessories
| nut | 2 pieces |
| Cotter pin | 2 |
Compatible Models
| S13 series (M12) | (R)PS13/S15 (vehicles without HICAS) |
| S14 series (M14) | S14/S15 (high-cast vehicle) A31/C33/ECR33/ER34/C34/C35/HCR32 |
*Please check the screw diameter. *Reinforced bellows push is used. *Depending on the installed knuckle, it may interfere with the folded part of the genuine lower arm. *Processing of the interfering part may be required. When installing on A31/C33/C34/C35/HCR32/ECR33/ER34, please pay attention to the combination with the tie rod.
Product details
- Product code: DMSU022AT3 ~ DMSU023AT3
Vehicle fitment: S13 (Silvia), S13 (240SX Coupe), 180SX (S13 Hatch), S14, S15, A31, C33, C34, C35, R32, R33, R34
Professional installation and a complete compatibility check are recommended before ordering and installation.
